Pin-type Polyurethane Screen Panel

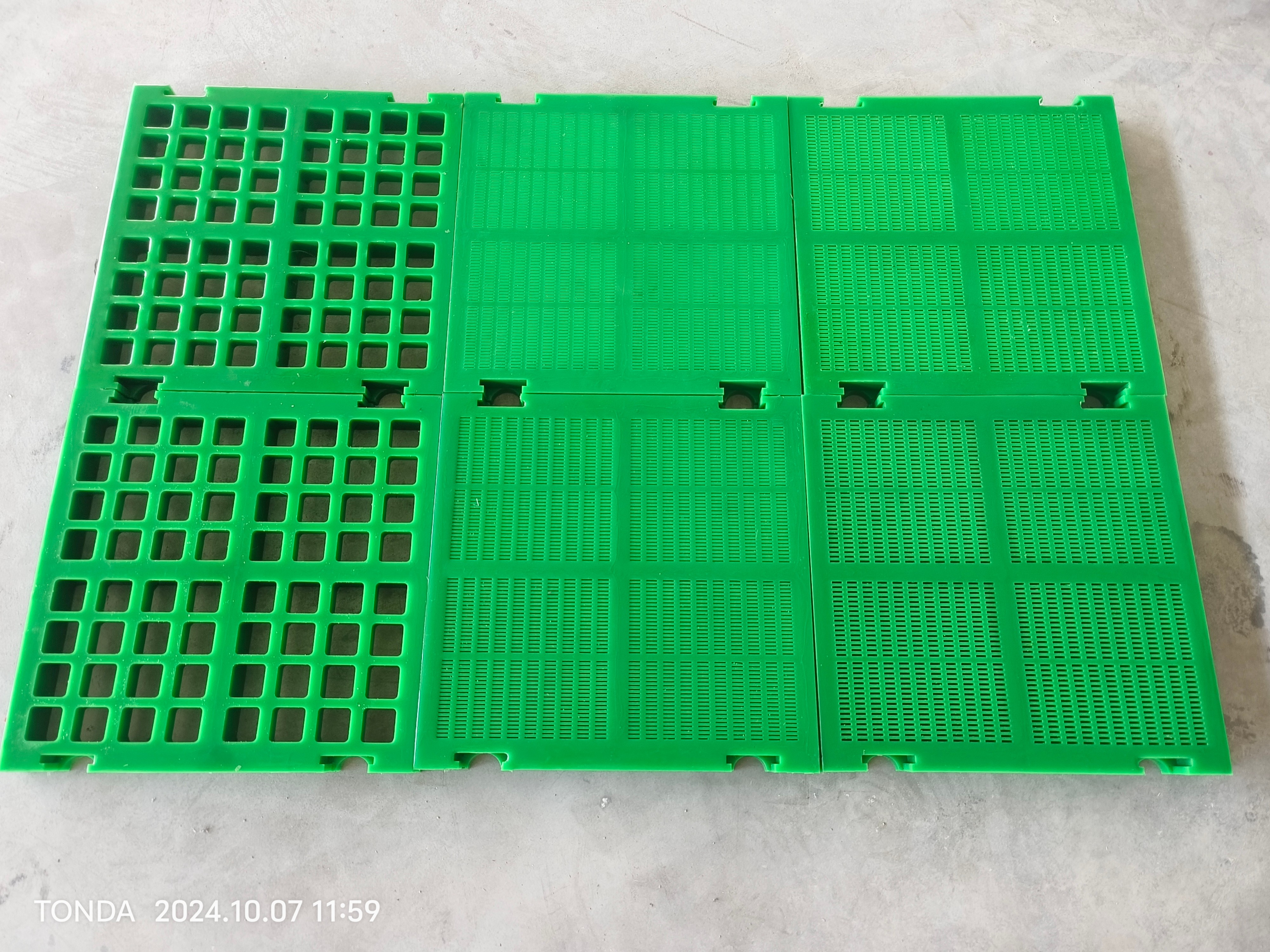

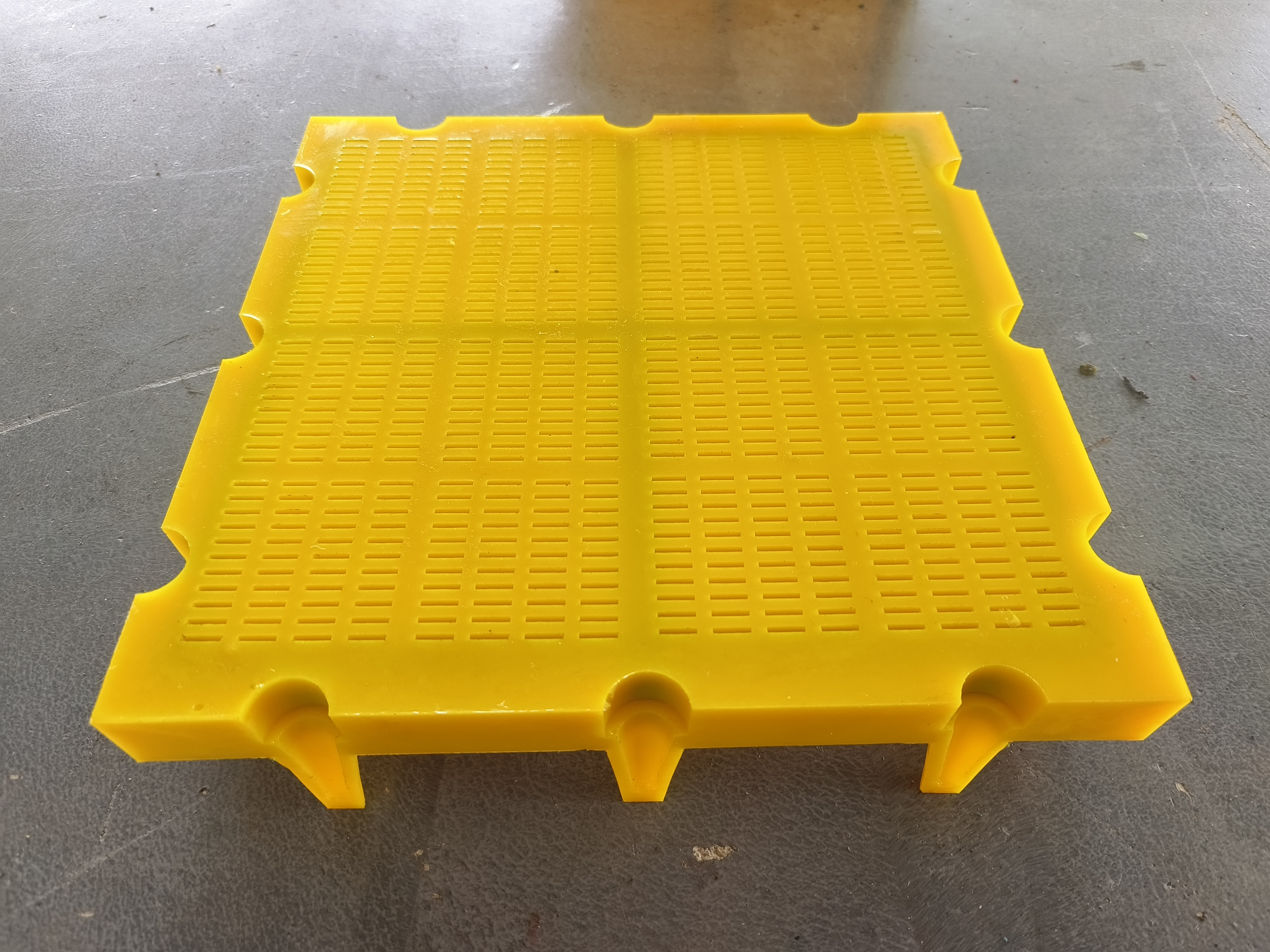

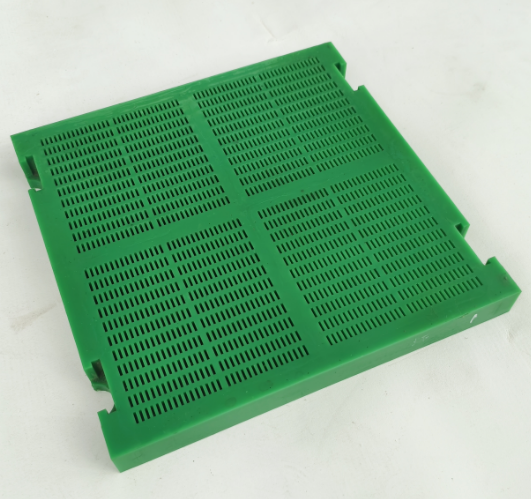

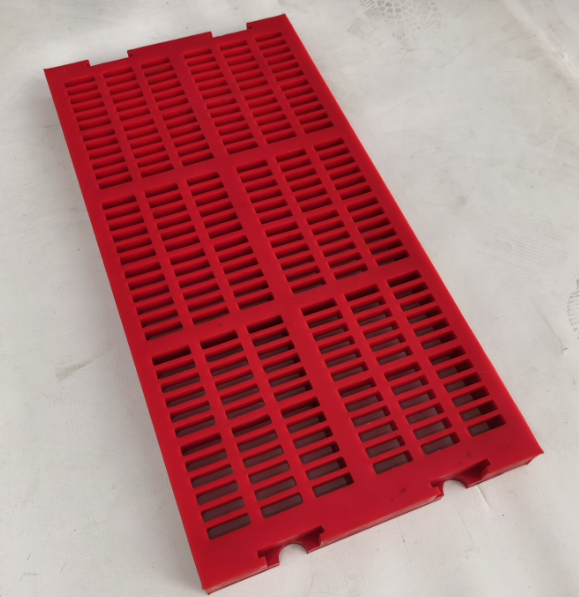

Pin style	Pin style -305 * 305	Pin style 305 * 610

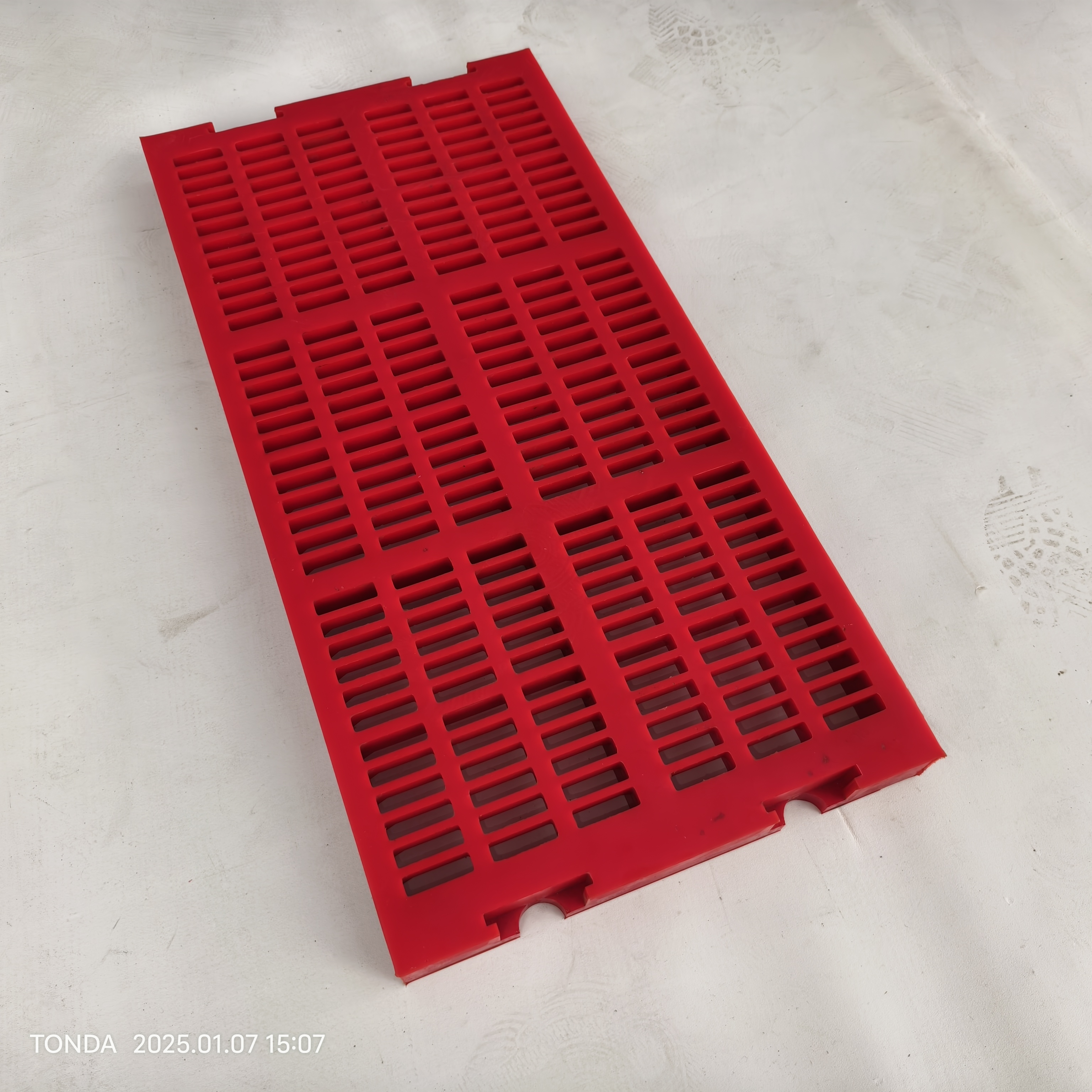

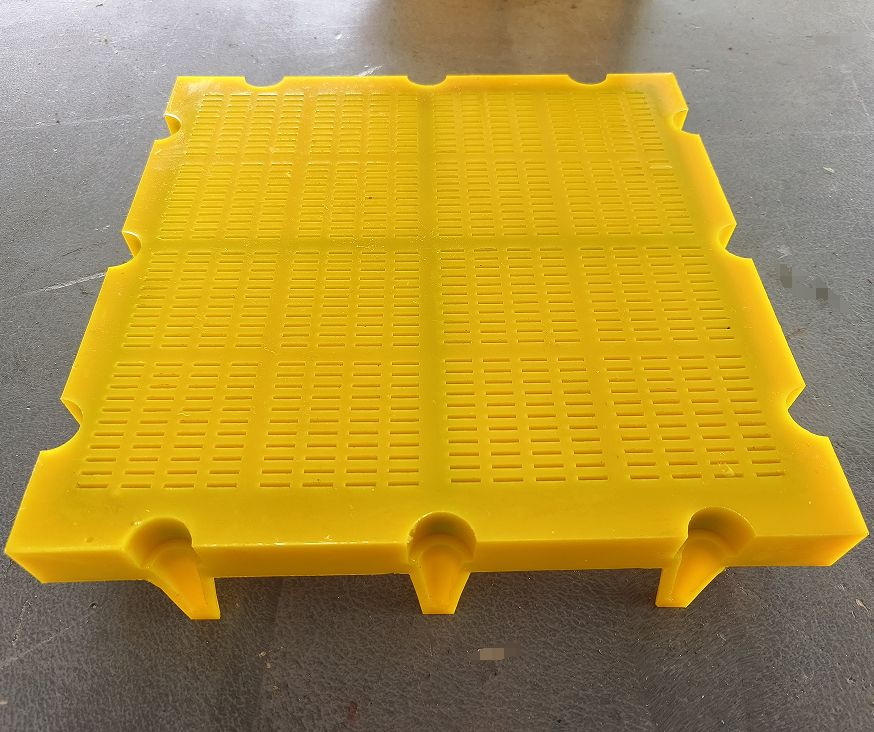

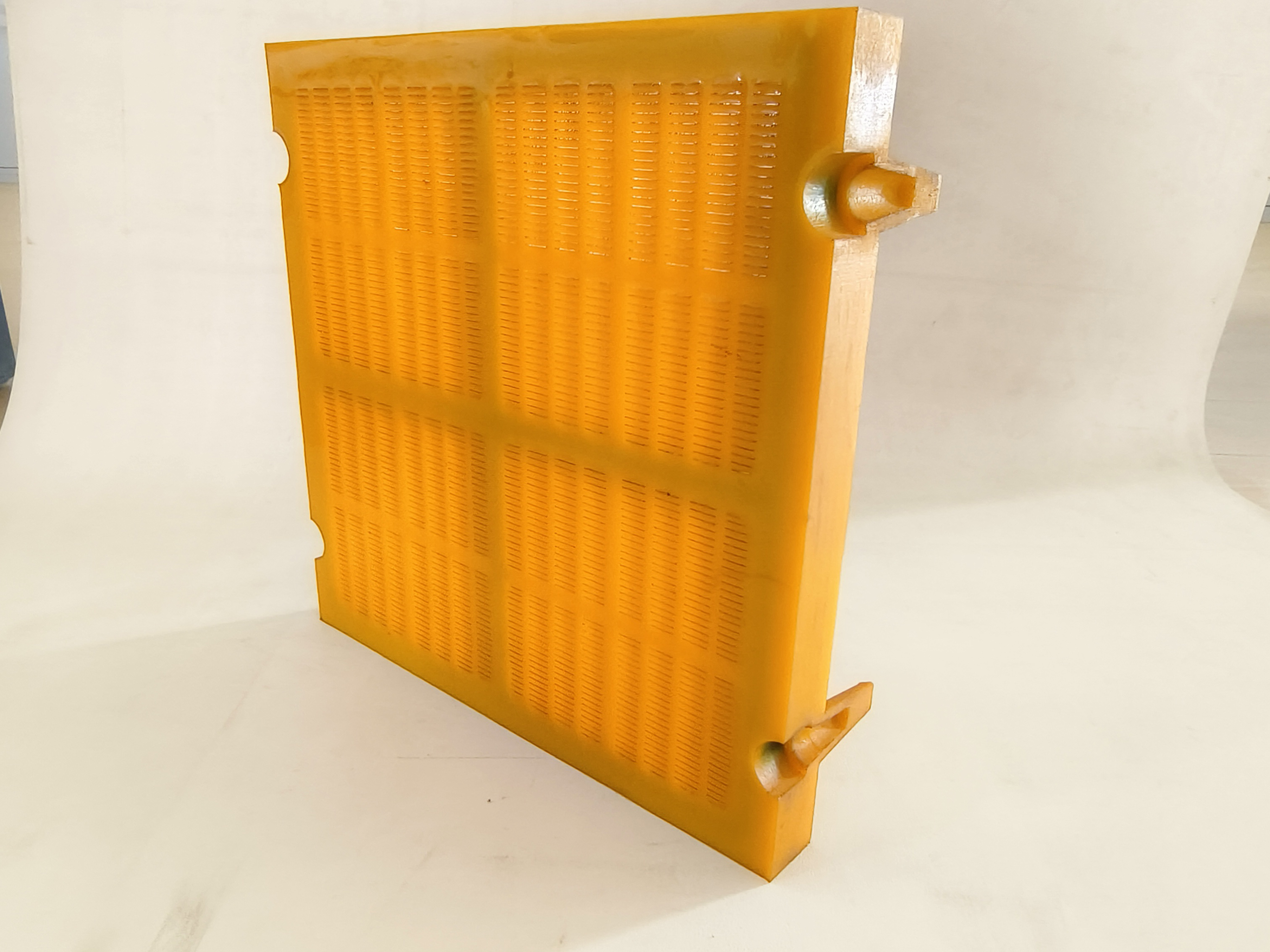

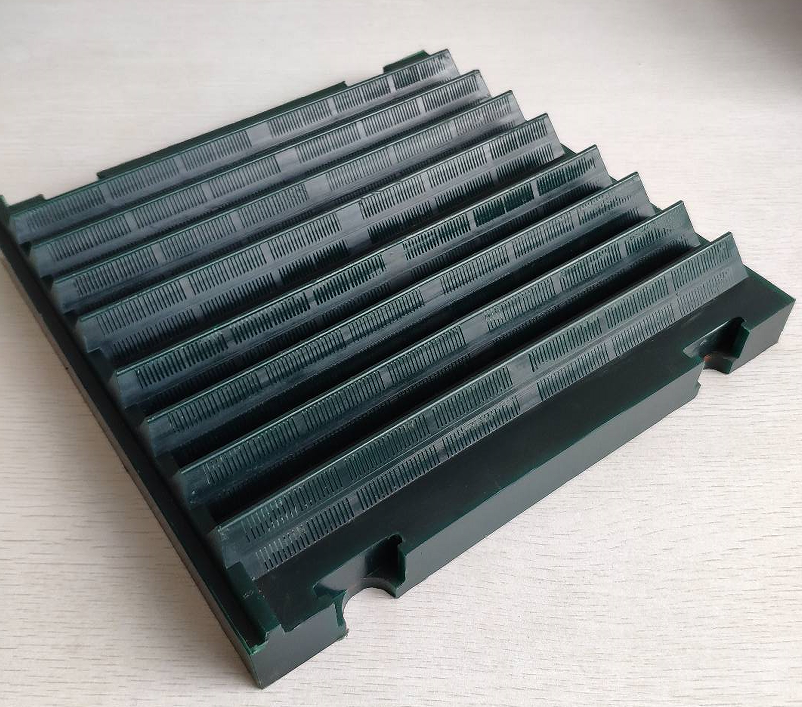

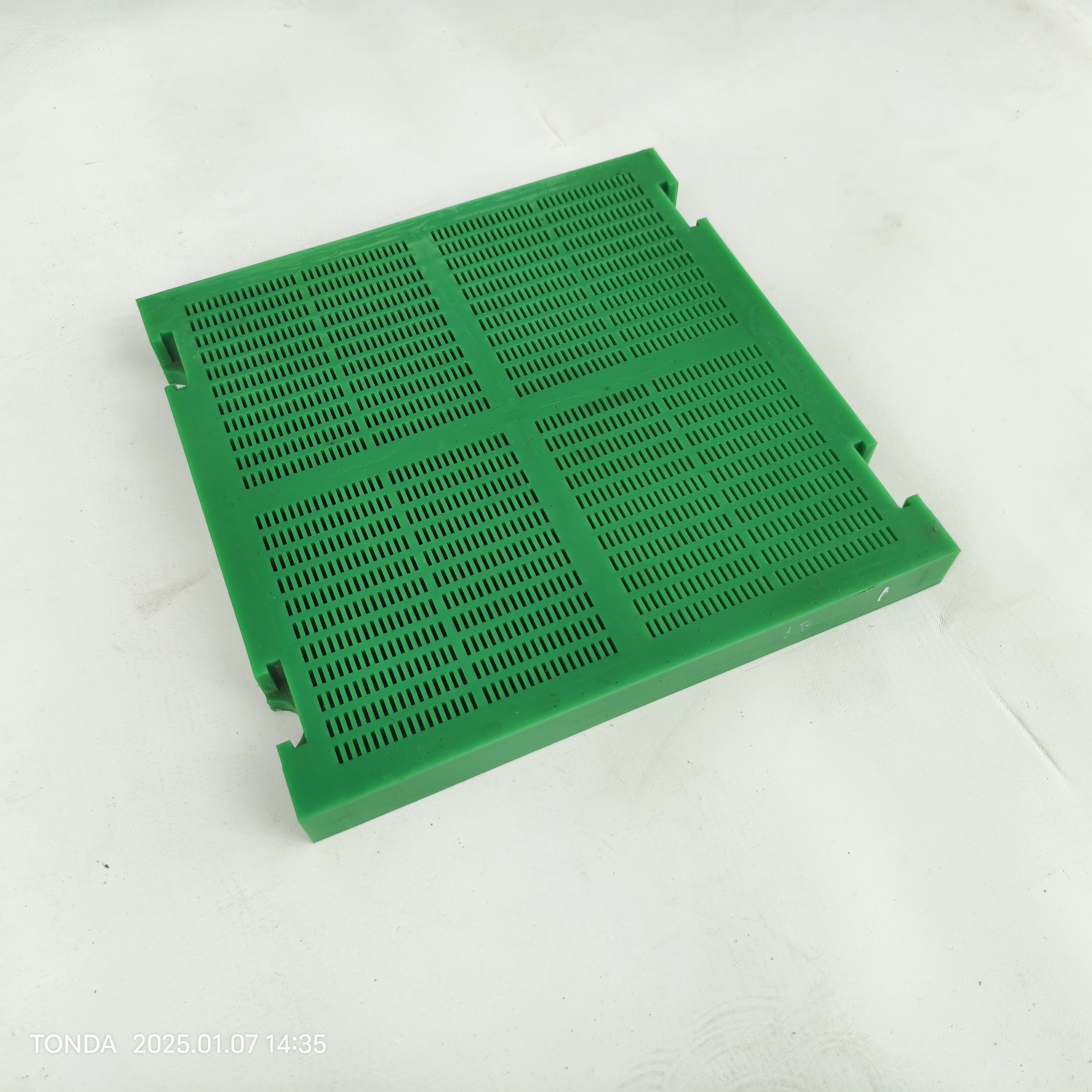

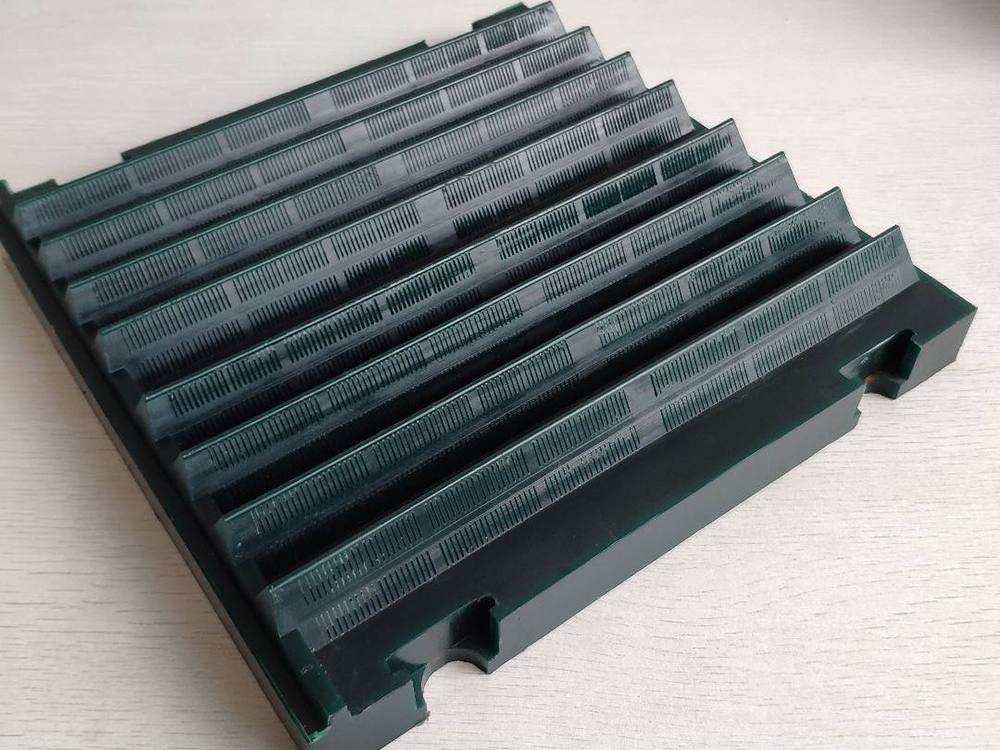

Pin style -305 * 305	Pin type high-efficiency sieve plate -305 * 305	Pin style -305 * 305

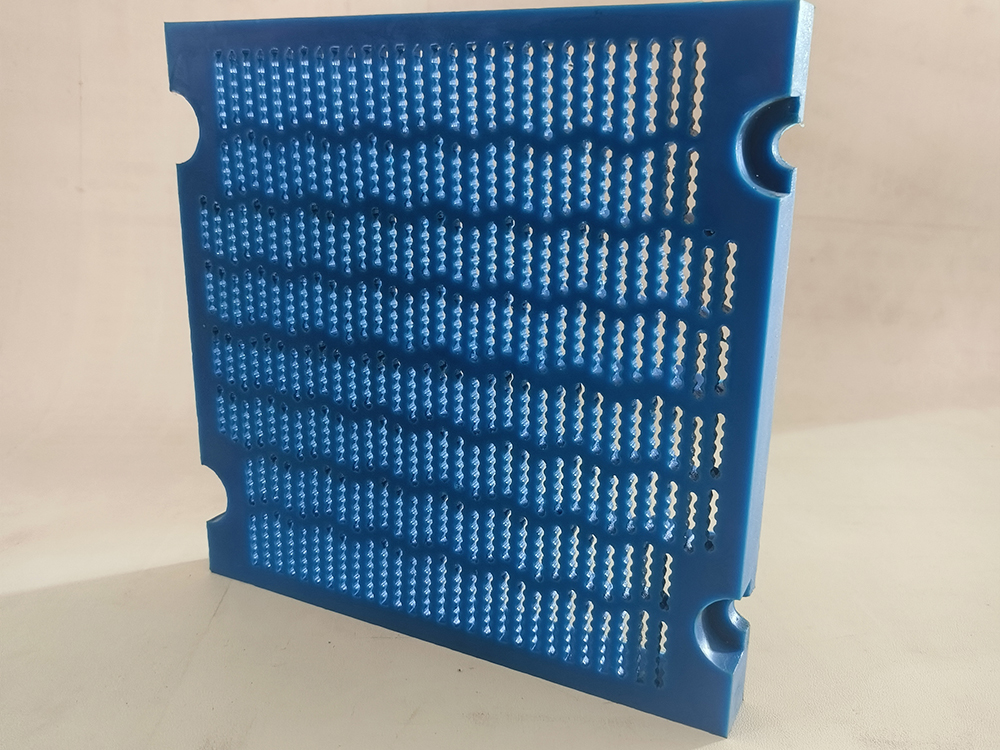

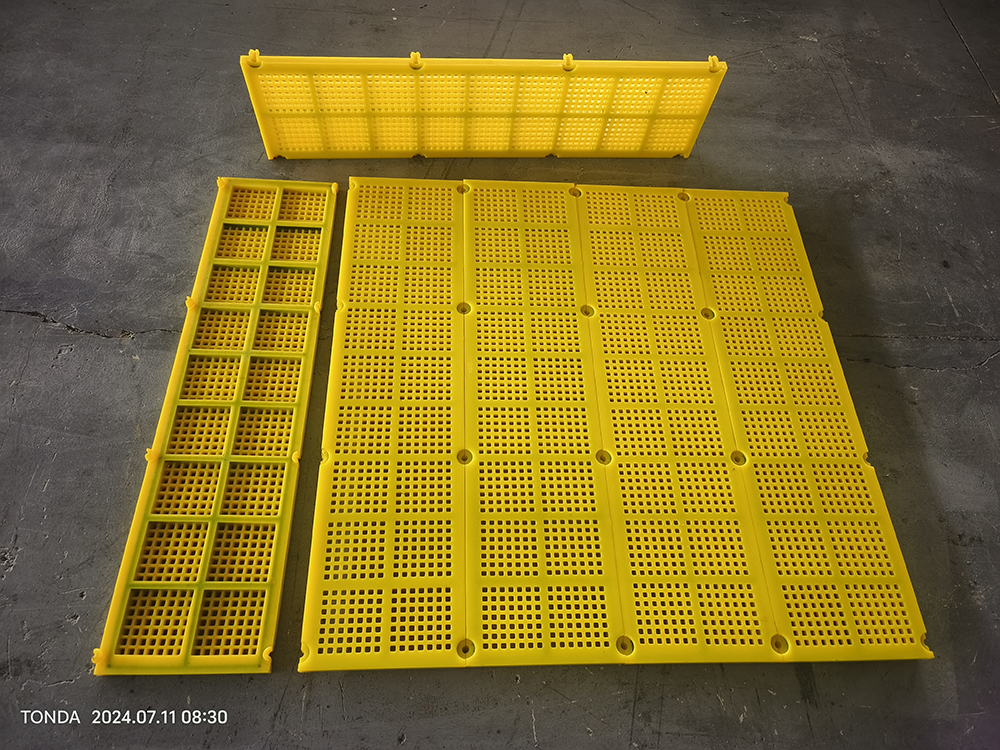

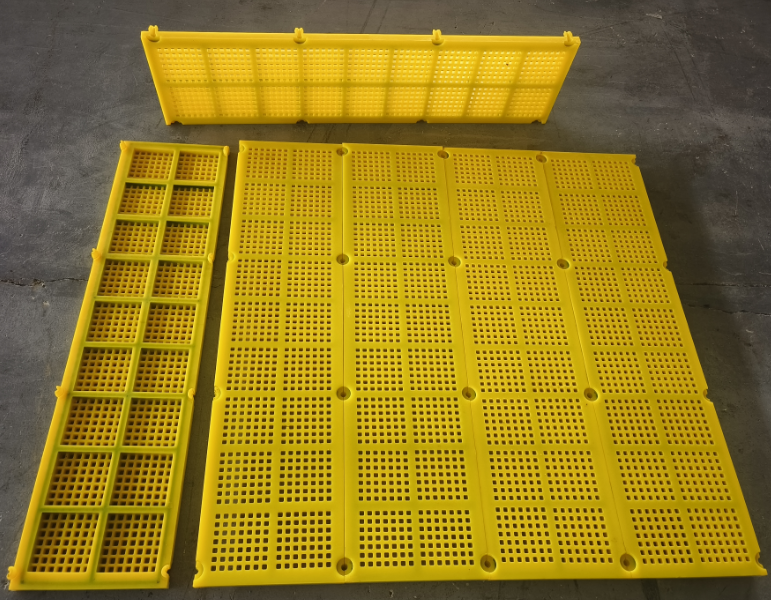

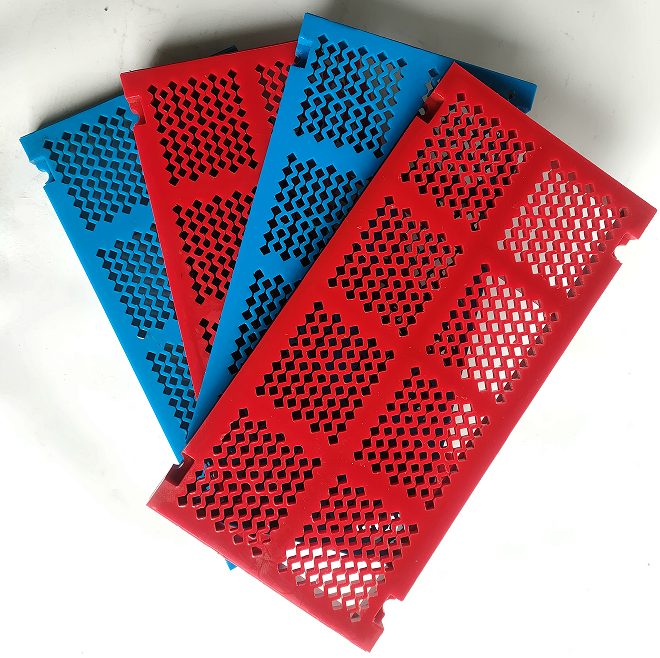

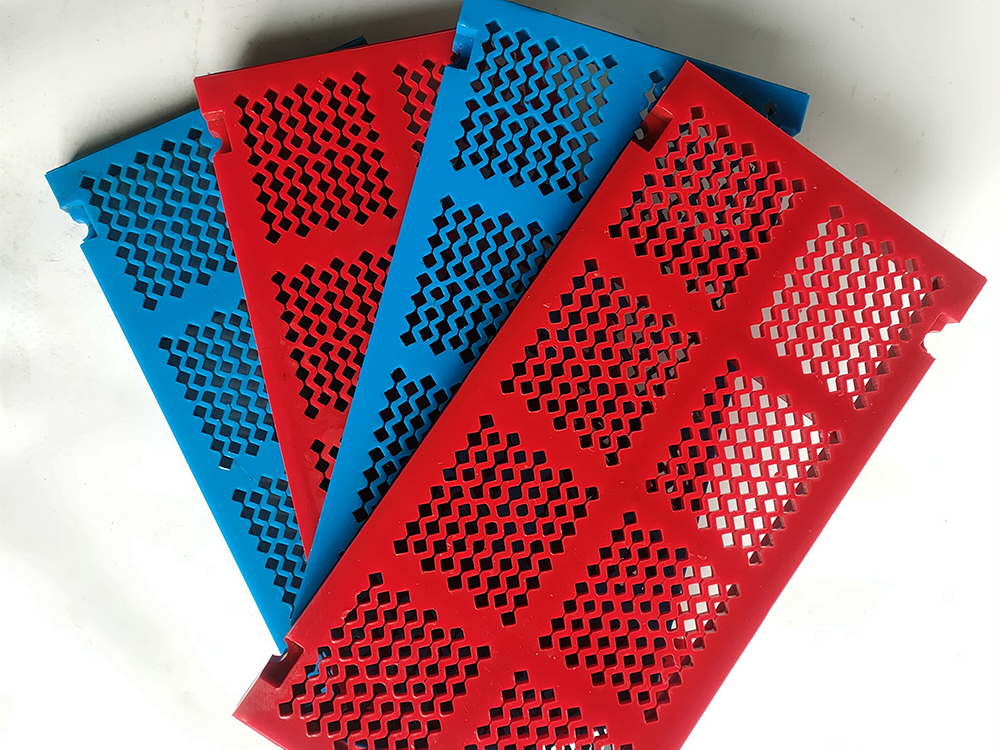

Pin type anti blocking sieve plate -305 * 610	Pin type anti blocking sieve plate -305 * 305	Pin style -305 * 1220

Product Overview
Our polyurethane tension bolt screen panels are engineered for superior performance in the most demanding industrial environments. Reinforced with high-tensile steel bolts and crafted from premium-grade polyurethane elastomers, these panels deliver exceptional resistance to abrasion, impact, and chemical corrosion. Designed for high-frequency vibrating screens, they ensure stable operation with minimal downtime, making them ideal for industries requiring precision and reliability.

Key Features
✅ Unmatched Durability

• 5x Longer Lifespan: Outperforms rubber and steel screens in abrasive applications like mining and aggregate processing.

• Steel Bolt Reinforcement: Embedded bolts prevent warping and enhance structural integrity under extreme loads (up to 800 cycles/minute).

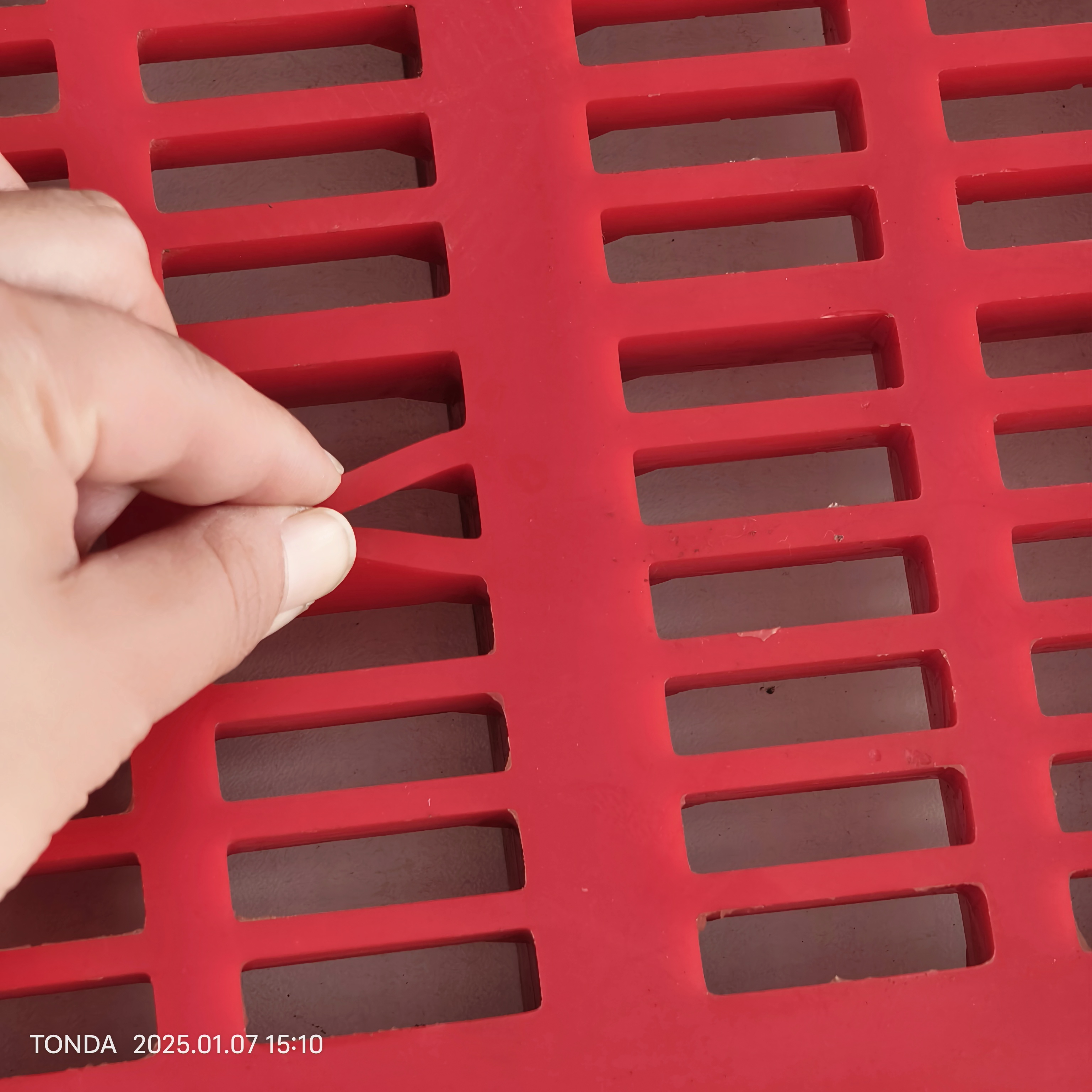

• Wear-Resistant Surface: Shore A 65–90 hardness options balance flexibility and resistance to cutting or tearing.

✅ Customizable Design

• Panel Sizes: Standard and custom dimensions up to 2500mm x 1200mm, with thickness options from 20mm to 100mm.

• Aperture Flexibility: Hole sizes from 0.5mm (fine powders) to 100mm (coarse ores) in round, square, or slotted patterns.

• Anti-Clogging Technology: Optimized open-area ratio and smooth surface finish reduce material adhesion, even for sticky substances like wet clay or biomass.

✅ Versatile Applications

• Mining & Quarrying: Efficiently grade coal, iron ore, limestone, and aggregates.

• Recycling & Waste Management: Separate construction debris, plastics, and municipal waste.

• Industrial Processing: Dewater sludge, filter chemicals, or screen food-grade materials with corrosion-resistant options.

Technical Specifications
